Induction furnace: an efficient heating solution for modern industry
As an important branch of industrial electric furnaces, induction furnaces have become core equipment in the fields of metal smelting, heat treatment, etc. with their high efficiency, precision and environmental protection. Whether it is a large steel enterprise or a precision parts manufacturer, the application of induction furnaces is gradually replacing traditional heating methods and becoming a key driving force for industrial upgrading. This article will start from the working principle, core application scenarios and sales characteristics of the induction furnace, and deeply analyze its market value and technical advantages.

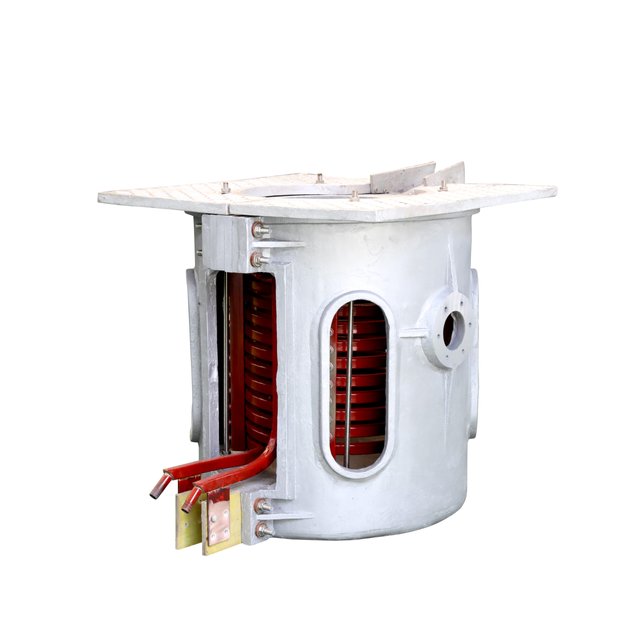

induction furnace
Working principle and classification of induction furnaces
Induction furnaces work based on the principle of electromagnetic induction: alternating current generates an alternating magnetic field in the induction coil, so that eddy currents are formed inside the metal workpiece, thereby converting electrical energy into thermal energy to achieve rapid heating or smelting. According to the current frequency, induction furnaces can be divided into the following three categories:
Industrial frequency induction furnace (50/60 Hz): suitable for large-scale metal smelting (such as cast iron, steel), with high power and large capacity, but slow heating speed.
Medium frequency induction furnace (100 Hz10 kHz): It has both efficiency and flexibility and is widely used in melting, diathermic forging and quenching of small and medium-sized castings.
High frequency induction furnace (above 10 kHz): It is suitable for precision processing (such as heat treatment of thin-walled parts and surface hardening), with fast heating speed and small heat-affected zone.
The core components of the induction furnace include variable frequency power supply, induction coil, cooling system and automatic control module. Its uniqueness lies in the fact that it does not require external fuel and directly achieves “non-contact heating” through electromagnetic field, which significantly reduces oxidation and pollution.
Typical application scenarios of induction furnaces
Metal smelting: the perfect combination of efficiency and purity
Induction furnaces perform well in metal smelting, especially for melting materials such as stainless steel, aluminum alloys, and copper alloys. For example, a medium frequency induction furnace can heat 1 ton of molten steel to 1600°C in 20 minutes, and the melt composition is uniform and has few impurities, which is suitable for high-end alloy preparation. Compared with traditional arc furnaces, the electromagnetic stirring effect of induction furnaces can reduce melt oxidation and improve metal purity.
Heat treatment: precision control improves product performance
In the heat treatment of automotive parts, bearings, cutting tools, etc., high-frequency induction furnaces achieve surface hardening (such as gear tooth surface quenching) through local rapid heating, which can not only maintain the toughness of the material core, but also form a high-hardness wear-resistant layer on the surface. Taking a certain automobile gear factory as an example, after using induction quenching, the gear life is increased by more than 3 times, and energy consumption is reduced by 40%.
Heating before forging and rolling: a win-win situation for efficiency and energy saving
The induction heating furnace can heat the metal billet to the forging temperature (such as 1200℃) within a few seconds, avoiding the long preheating of traditional gas furnaces. After a forging company introduced a medium-frequency induction furnace, its production efficiency increased by 50%, and gas consumption decreased by 70%, saving more than one million yuan per year.
Special material processing: vacuum and controlled atmosphere environment
Induction furnaces can be combined with vacuum systems for melting active metals such as titanium alloys and high-temperature alloys to prevent oxidation; in the semiconductor industry, high-precision induction furnaces are used for silicon crystal growth to ensure a purity of 99.9999%.
III. Six core selling features of induction furnaces
High efficiency and energy saving, significantly reducing production costs
The thermal efficiency of induction furnaces is as high as 60%75%, far exceeding the 20%30% of gas furnaces. Taking the melting of 1 ton of aluminum as an example, the induction furnace consumes 500 kWh of electricity, while the resistance furnace requires 800 kWh, with an energy saving rate of 37.5%. In addition, its rapid heating characteristics can shorten the production cycle. For example, after a company adopted an induction furnace, its daily production capacity increased by 3 times.
Accurate temperature control to ensure process consistency
The induction furnace equipped with a PID automatic temperature control system has a temperature accuracy of up to ±1°C, which is particularly suitable for heat treatment of aerospace parts. Through infrared temperature measurement and closed-loop feedback, multi-stage program heating can be achieved to avoid manual operation errors.
Environmentally friendly and pollution-free, in line with the trend of green manufacturing
Induction furnaces do not need to burn fossil fuels, and there is no smoke or sulfur oxide emissions; the closed design reduces heat loss, the noise is less than 75 decibels, and the working environment is safer. After the transformation of a foundry, carbon emissions were reduced by 80%, and it passed the ISO 14001 certification.
Automation and intelligence, reducing dependence on manpower
Modern induction furnaces integrate PLC and IoT modules to support remote monitoring, fault self-diagnosis and production data traceability. For example, a company has realized an “unmanned workshop”, and only one inspector is required for a single production line, reducing labor costs by 90%.
Flexible adaptation to multiple scenarios, one machine for multiple uses
By replacing the induction coil and adjusting the parameters, the same device can process workpieces of different shapes and materials. For example, a hardware factory uses a medium-frequency induction furnace to complete multiple processes such as smelting, quenching, and annealing, and the equipment utilization rate has increased by 200%.
Long life and low maintenance, high return on investment
High-quality induction furnaces use water-cooled copper coils and IGBT frequency conversion technology, with a lifespan of more than 10 years, and maintenance costs are only 1/3 of traditional equipment. Taking a steel plant as an example, the equipment investment payback period is only 2 years, and the long-term comprehensive cost is reduced by 50%.
IV. Key considerations for purchasing induction furnaces
Power and frequency matching requirements
For large-scale smelting, choose industrial frequency (such as molten steel above 10 tons);
For heat treatment of small and medium-sized parts, choose medium frequency (1001000 kW);
For precision machining, choose high frequency (＞10 kHz).
Energy efficiency and intelligent configuration
Preferably choose models with energy recovery systems and adaptive power adjustment functions. For example, a certain brand of induction furnace can save 15% energy through real-time load matching.
Brand and service guarantee
International brands (such as ABB, Inductotherm) have mature technology but high prices; domestic equipment (such as Zhonghui electric furnace) has outstanding cost performance and faster after-sales service response.
V. Future Trends: Technological Innovation of Induction Furnaces
Ultra-high frequency and composite heating technology: Combined with laser or microwave to achieve nano-level material processing.
Digital twin and AI optimization: Predict process defects through simulation and simulation to improve yield rate.
Green energy adaptation: Compatible with unstable power sources such as photovoltaics and wind power to reduce grid dependence.
Conclusion
Induction furnaces are not only an upgrade option for industrial heating equipment, but also a core tool for enterprises to move towards intelligent and green manufacturing. Its high efficiency, precision and environmental protection characteristics help enterprises reduce costs and increase efficiency, and enhance market competitiveness.
Whether it is large-scale smelting or precision heat treatment, induction furnaces can meet diverse needs with excellent performance and become an indispensable “heat energy engine” for modern industry.
Tips: Be sure to verify the energy efficiency certification of the equipment (such as CE, ISO) before purchasing, and ask the supplier to provide process test support to ensure that the equipment is perfectly matched with production needs!
